Instruments Of Plane Table Surveying
The following instruments are used in plane table surveying.
Equipments:
Plane Table
Tripod
Alidade
Accessories:
Trough Compass
Spirit level
U-Fork with Plumb bob
Water proof cover
Drawing paper
Pins
Drawing accessories
Equipments:
Plane Table:
The drawing board for plane tabling is made from well-seasoned wood with its upper surface exactly plane.
It is normally rectangular in shape with size 75 cm x 60 cm
It is mounted on a tripod and clamps are provided to fix it in any direction. The table can revolved about its vertical axis and can be clamped in any position, when necessary.
Tripod:
The plane table is mounted on a tripod
The tripod is generally of open frame type, combined rigidity with lightness. The tripod may be made to fold for convenience of transportation.
Tripod is provided with three foot screws at its top for leveling of the plane table.
Alidade:
The alidade is useful for establishing a line of sight.
Two Types of alidade are used.
Simple alidade
Telescopic alidade
Simple Alidade:
It is used for ordinary work
It is generally consists of a gun metal or wooden rule with two vertical vanes at the ends.
The eye-vane is provided with a narrow slit while the object vane is open and carries a horse hair. Both the slits, thus provide a definite line of sight which can be made to pass through the object to be sighted
To draw the rays, one of the edge of alidade is beveled and this perfectly smooth working edge is known as the fiducially edge.
The fiducially edge is graduated to facilitate the plotting of distances to a scale.

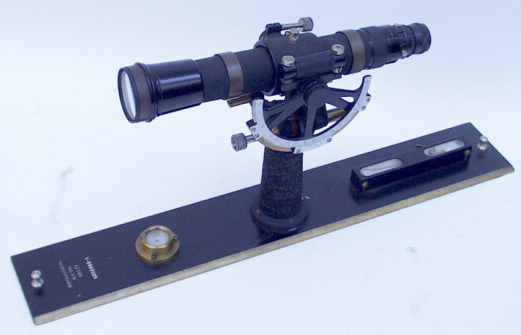

Telescopic Alidade:
The telescopic alidade is used when it is required to take inclined sights.
It essentially consists of a small telescope with a level tube and graduated arc mounted on horizontal axis.
It gives higher accuracy and more range of sights.
Accessories:
Trough Compass:
The trough compass is required for drawing the line showing magnetic meridian on the paper. It is used to orient the table to the magnetic meridian.
When the freely suspended needle shows 00 at each end, a line is drawn on the drawing paper which represents the magnetic north.

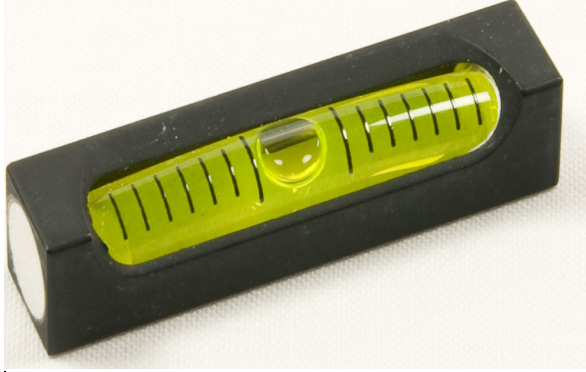

Spirit Level:
A Spirit Level is used for ascertaining If the table is properly level.
The Table is leveled by placing the level on the board in two positions at right angles and getting the bubble central in both positions.
U-Fork With Plumb bob
U-fork with plumb bob is used for centering the table over the point or station occupied by the plane table when the plotted position of that point is already on the sheet.
Also, in the beginning of the work, it is used for transferring the ground point on the sheet.
Water Proof Cover
An umbrella is used to protect the drawing paper from rain.
Drawing Paper
Drawing paper is used for plotting the ground details.
